Empowering More Use Scenarios
Two Auxiliary Fans Set the Style Right Off
The part cooling airflow is nearly doubled as two auxiliary cooling fans are installed
on the left and right sides of the chamber. The shapes and styles of your model will be set
before any stringing and warping can happen.
K2 PLUS
OTHERS
Ingenious Anti-tilt Auto Leveling
Pro-level First Layer
Two Z-axis are independently motorized for movement, able to reduce the bed tilt automatically.
Toolhead AI Camera
Tunes the Flow Rate
There is also an AI camera on the toolhead.
It can analyze a test 3D model and then generate
an optimal PA value or flow rate percentage value.
No more underfeeding and overfeeding
that degenerate your prints.

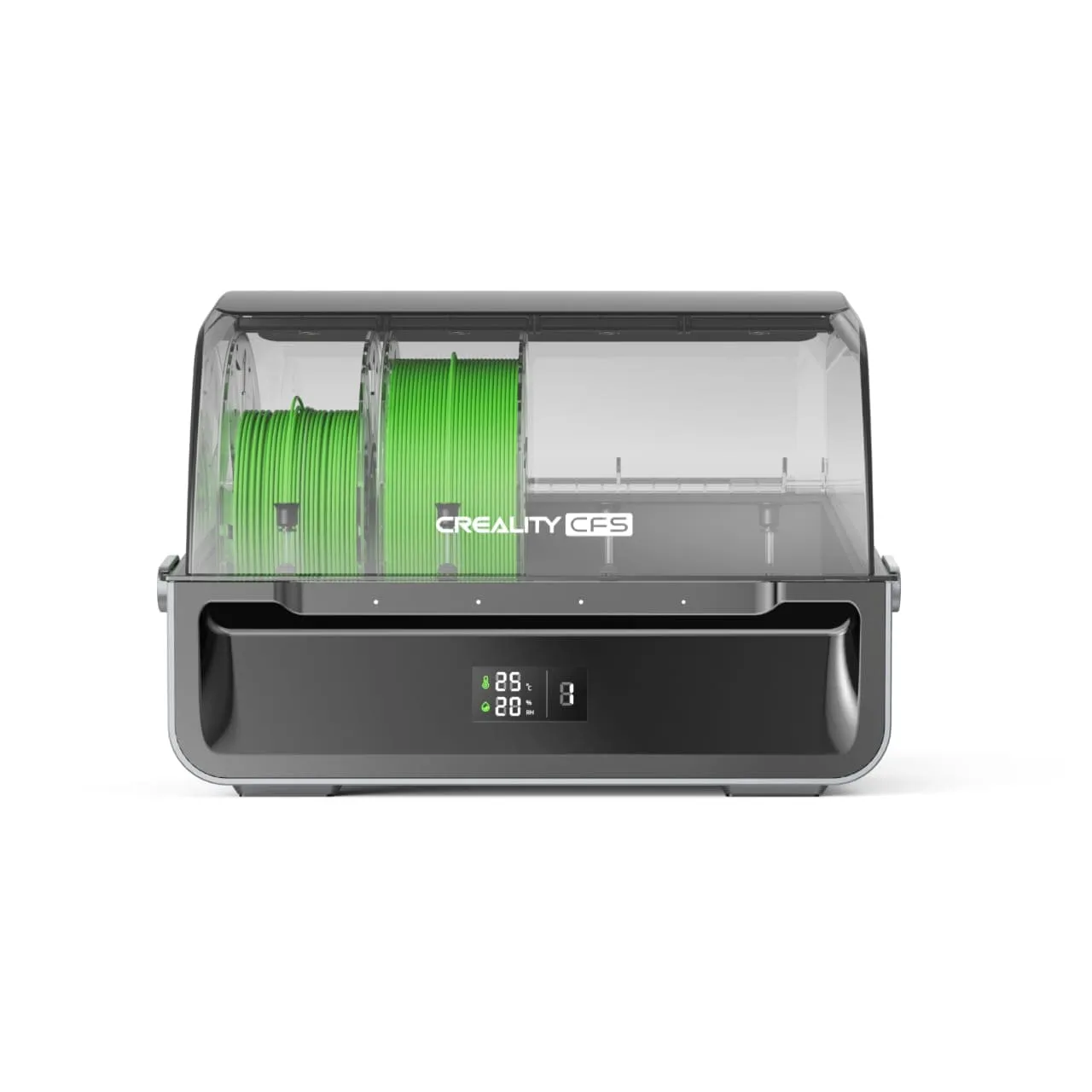

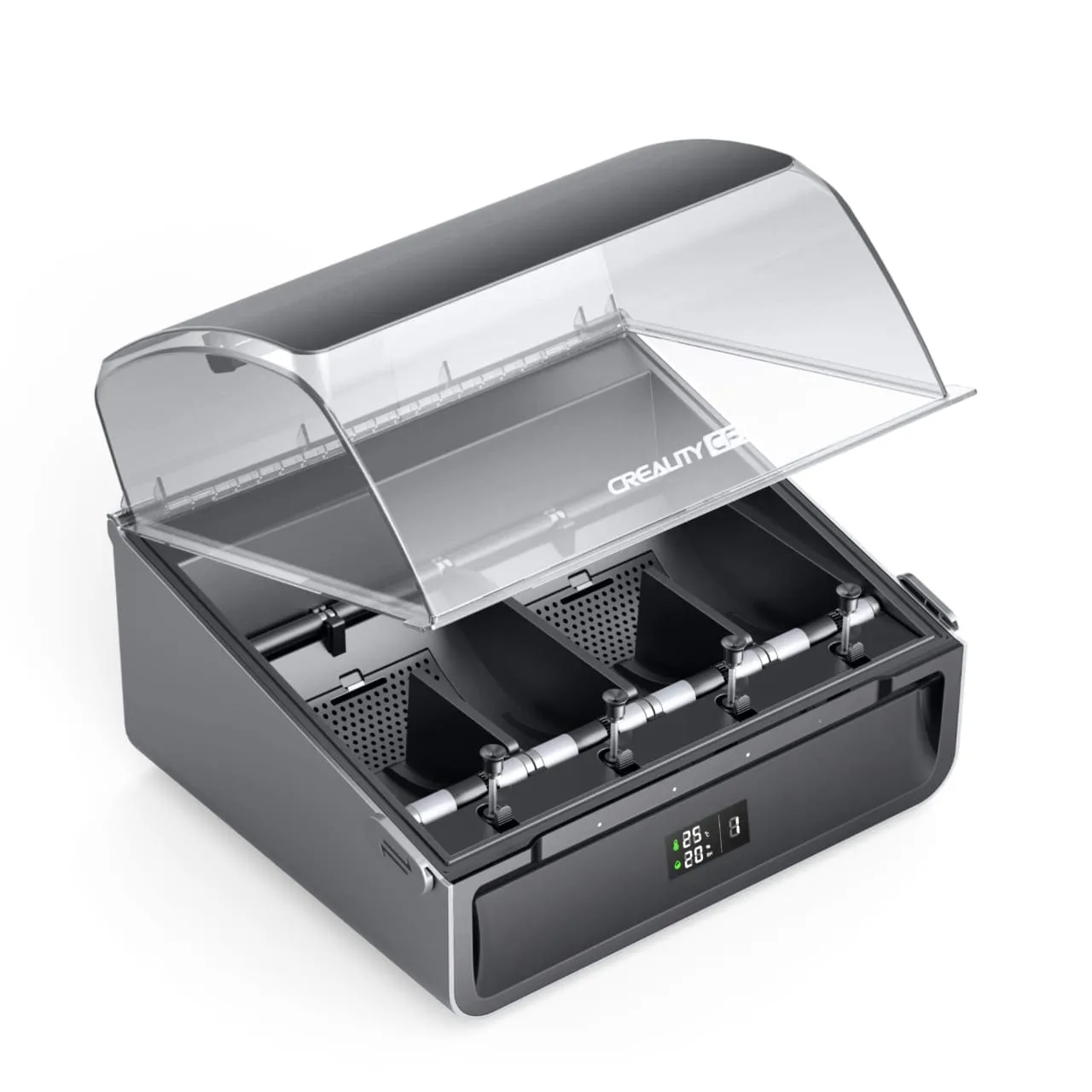

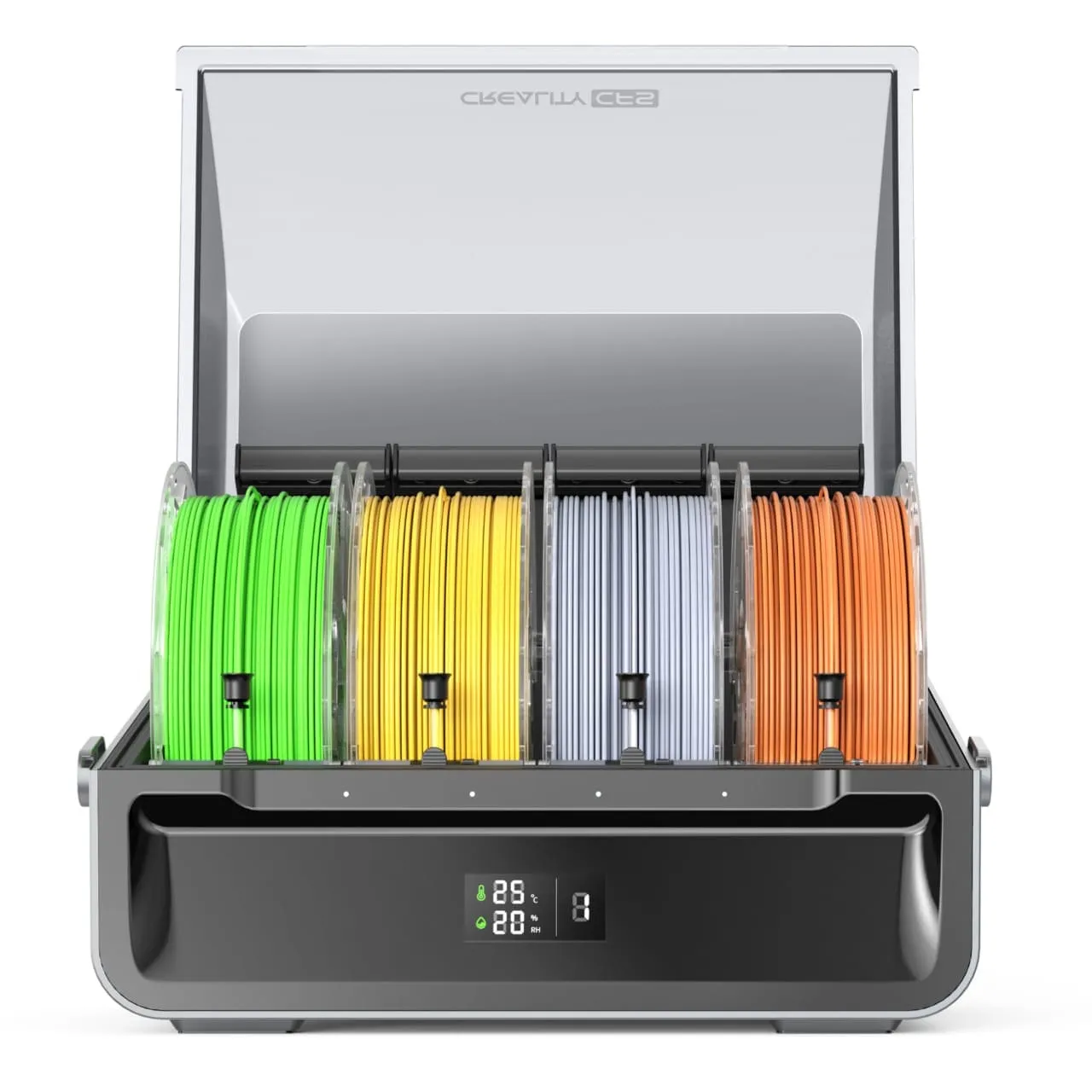

CFS is actually an intelligent filament management system. It enables automatic filament loading and unloading in addition to multi-color 3D printing. So, it can save you the troubles of filament replacement. And when the filament backup function is on, if the current filament spool is running out, it can continue by selecting and loading another spool automatically. It also makes a well-sealed drying box that you can store filaments for a long time.
Durable Direct
Drive Extrusion
Hardened steel gears for better durability. No issue coping with the repeated filament ingress and egress.
40mm³/s
High-flow Hotend
Powered by an 80W heater, the flow rate of ABS at 280℃ can reach 40mm³/s*, 66% higher than the previous design.
Clog-free & Quick-swap Nozzle
The tri-metal nozzle curbs heat creep effectively for minimal clogs, and the integrated nozzle
design and the magnetic front cover make the nozzle swap a breeze.
K2 Plus uses two optical distance sensors on Z-axis for auto tilt adjustment and a strain guage in the printhead for auto leveling. So it can ensure accurate leveling with less compensation. The whole process is automated without your attention. Moreover,the aluminum heatbed is 5mm thick and hard to deform, so the leveling accuracy can be well guaranteed.
The K2 Plus heatbed adopts an 800W high-power AC heating system with double safeguards. For one, there is an overheating fuse under the heatbed which will automatically disconnect in overheating. There is also a fuse in the machine body. When an unexpected situation occurs, it will disconnect to ensure safety.
CFS can use any flament spools with a diameter of 197-202mm. Creality paper spools are compatible. CFS supports most filaments such as PLA/PETG /ABS/ASA/PA-CF, but not with flexible filaments such as TPU and damp PVA/BVOH.
CFS does not support TPU. To print with TPU, you can install it on the standard spool holder of K2 Plus.
K2 Plus has two cameras. One is located close to the nozzle. It is used for flow rate and PA(Pressure Advance)calibration. Another is attached to the front frame. It is used for video monitoring and print failure detection.
